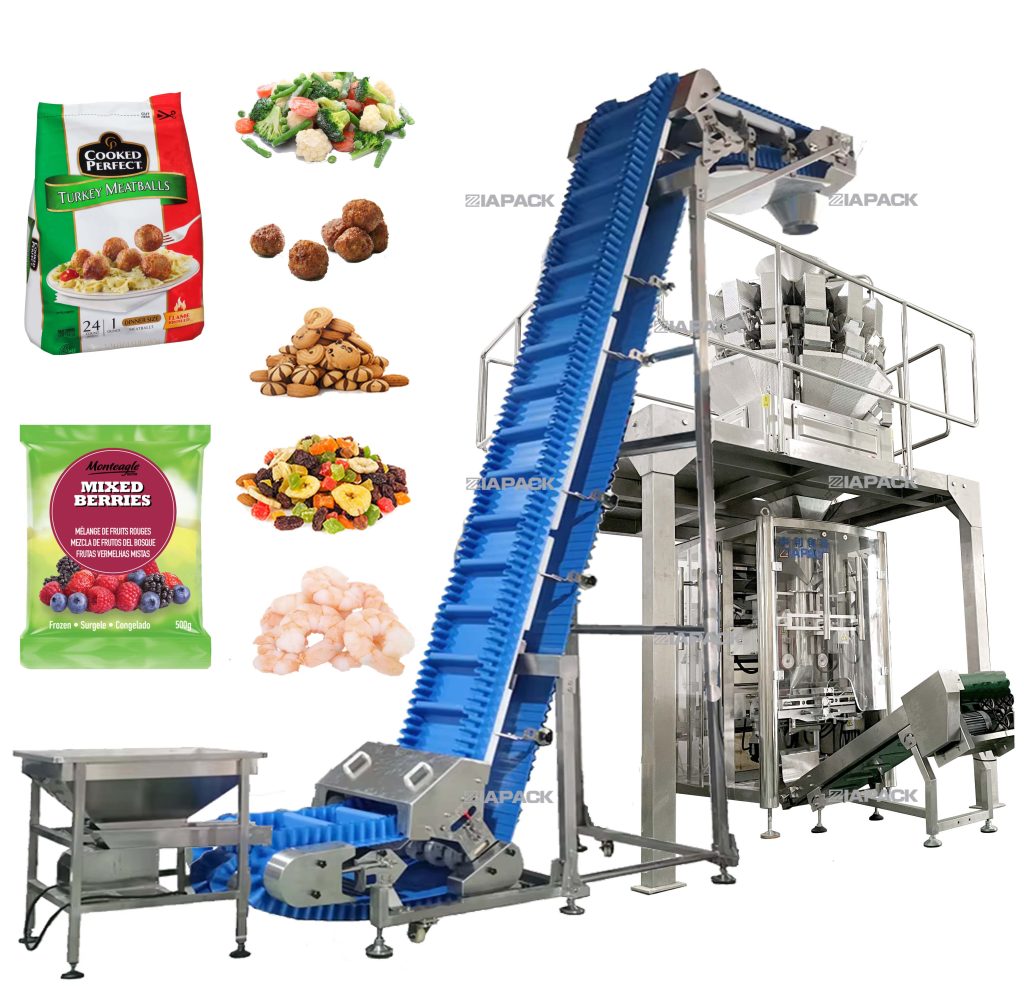

Automatic frozen food weighing filling packaging machine

परिचय:

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

अनुप्रयोग:

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

विशेषताहरु:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

निर्दिष्टीकरण:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

परिचय:

यो मेसिनले झोला बनाउने, भर्ने, सील गर्ने, प्रिन्ट गर्ने, काट्ने, इत्यादिका कार्यहरू स्वचालित रूपमा महसुस गर्न सक्छ। यो मेसिनले झोला भर्ने र सील गर्ने गरी स्वचालित रूपमा पुग्न सक्छ।

यो प्याकेजिङ्ग मेसिनले फिल्म फिडको लागि आयात सर्वो मोटरलाई अपनाउँछ र म्यान-मेसिन इन्टरफेसले उन्नत टच स्क्रिन प्रयोग गर्दछ। सञ्चालन सरल र अधिक सुविधाजनक। सबै कम्पोनेन्टहरूले अन्तर्राष्ट्रिय प्रसिद्ध ब्रान्ड अपनाउछन्, PLC SIEMENS हो, सर्वो मोटर PANASONIC हो, टच स्क्रिन SIEMENS हो, सिलिन्डर र एयर भल्भ SMC हो। सामग्री, नियन्त्रण क्याबिनेट, मुख्य फ्रेमसँग सम्पर्क गर्ने भागहरू स्टेनलेस स्टील 304 बाट बनेका छन्

प्राविधिक परिमितिहरू:

प्याकिङ गति (MAX): 20-50 bags/min

झोला प्रकार: तकिया झोला .gusseted झोला

Bag size: bag width 60-250mm bag length 80-350mm

संकुचित हावा खपत: 0.6 MPa 350 L/min

विद्युत आवश्यकता: 380V/5.5 kW50 Hz
