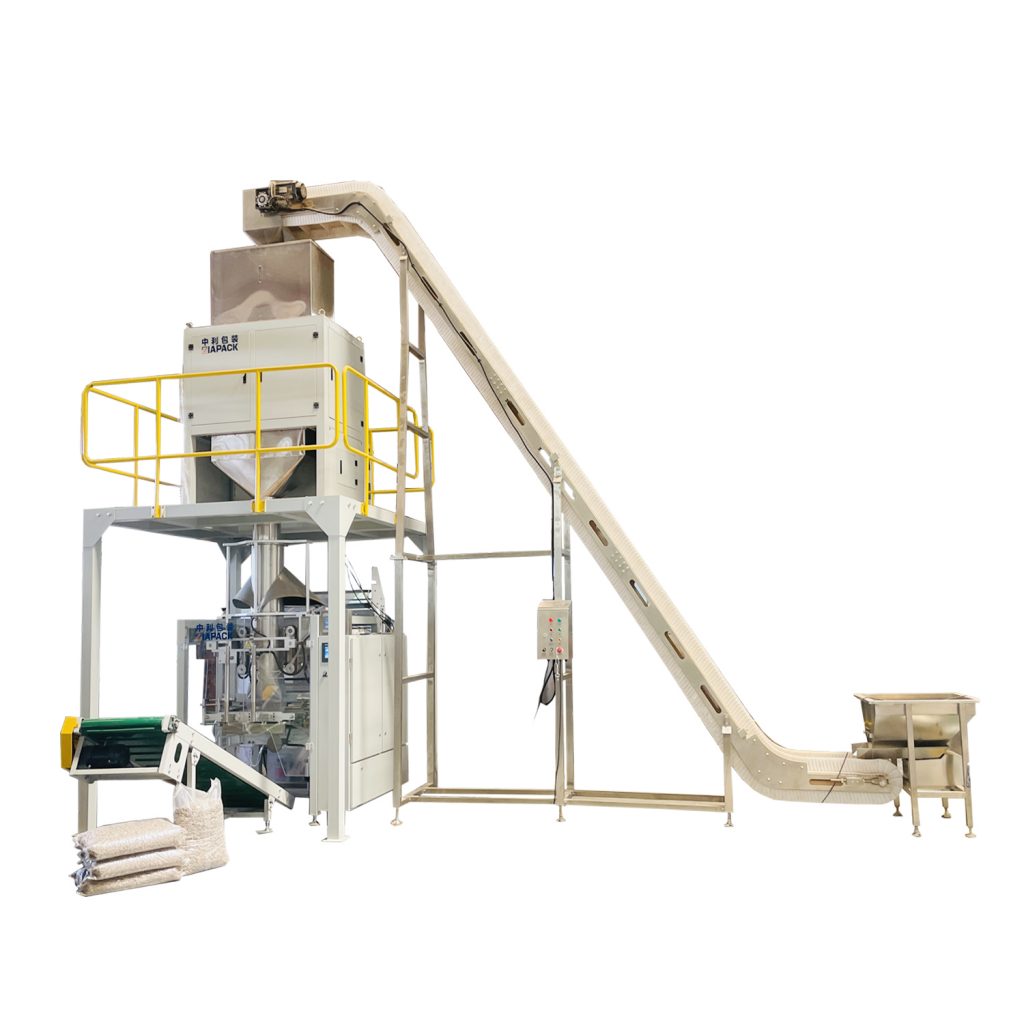

Automatic15-20 kg wooden pellets bag forming filling packaging machine
परिचय:
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
प्राविधिक परिमितिहरू:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
संकुचित हावा आवश्यकता: 0.6Mpa 0.65m³/मिनेट
Reel outer diameter: 450mm
कोर भित्री व्यास: 75mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
मुख्य विशेषताहरु र विशेषताहरु:
- पाउचहरूको विस्तृत श्रृंखला: तकिया र गसेट पाउचहरू।
- उच्च गति: 20-50 झोला / मिनेट
- सञ्चालन गर्न सजिलो: पीएलसी नियन्त्रक र रंग टच-स्क्रिन, टच स्क्रिनमा दोष संकेत।
- समायोजन गर्न सजिलो: विभिन्न पाउचहरू परिवर्तन गर्न लगभग 10 मिनेट।
- आवृत्ति नियन्त्रण: दायरा भित्र आवृत्ति रूपांतरण द्वारा गति समायोजित गर्न सकिन्छ।
- उच्च स्वचालन: वजन र प्रक्रिया को पैकिंग मा अपमानित, विफलता मा मिसिन अलार्म स्वचालित रूप देखि।
- सुरक्षा र स्वच्छता:
- कुनै चलचित्र, मेसिन अलार्म हुनेछैन।
- मिसिन अलार्म र अपर्याप्त हावाको दबाव हुँदा रोक्नुहोस्।
- सुरक्षा-स्विचहरू, मर्मत अलार्म र सुरक्षा गार्ड खोलिएका बन्दुकहरू संग सुरक्षा गार्ड।
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

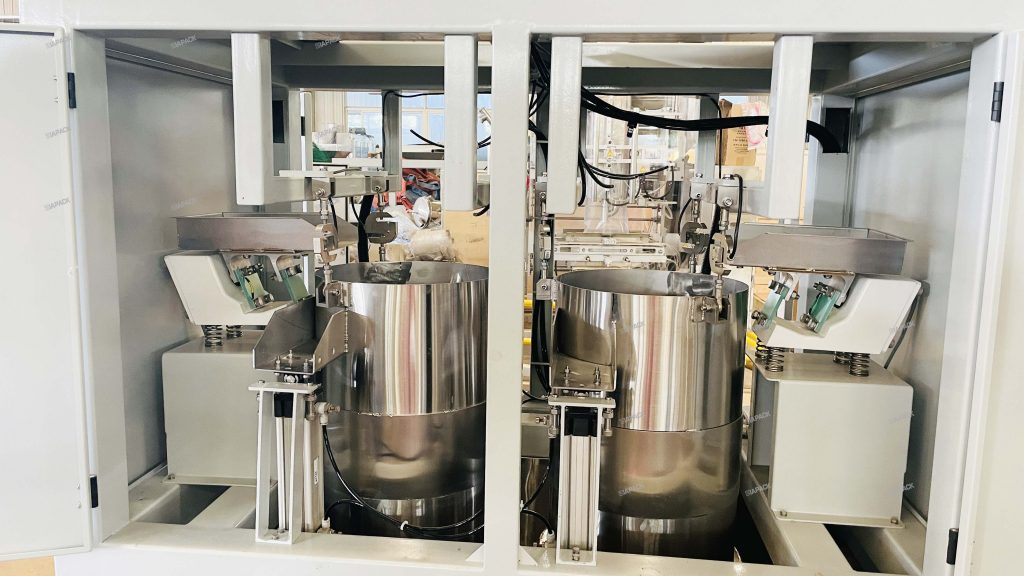

- ZLC2-15k double bucket weighing machine
परिचय:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
विशेषताहरु:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
